Lary CE approved rubber injection molding machine for shoe sole
Lary CE approved rubber injection molding machine for shoe sole
Categories Single color rubber injection for shoe sole Album View larger image Brand Lary Model LRS165 FOB port Ningbo Terms of Payment T/T Download DOC
Update Time 2020-02-26 Detail InformationLRS165 Single Color Rubber Molding Injection Machine For Shoe Sole ( Two Stations)
By the advanced European technology,we develop single color rubber injection machine,and doube-color/material rubber injection machine.they are especially designed for shoe sole injection.
Equipped with automatic die change system, energy-saving hydraulic system, fully automated production, one worker can operate four or six stations.
The first double-color /material rubber soles injection molding machine in the world,can be used for injection to produce two-color rubber soles.what's more,the machine makes it possible to produce more than three-color rubber soles with embedded color technology.

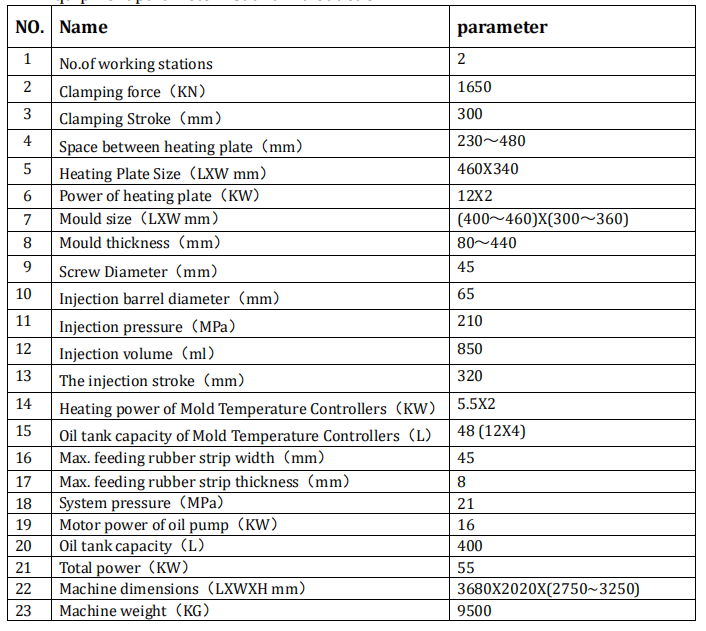

Technical Parameters:
Single color rubber injection
LRS165
1.
Clamping force
KN
1650
2.
No. of working station
Station
2
3.
System pressure
Mpa
21
4.
Injection pressure
Mpa
183
5.
Opening/Clamping stroke
mm
300
6．
Heating Plate Dim.
mm
300×375
7.
Daylight between heating plates
mm
220~500
8.
Max Injection volume
cm3
1000
9.
Max. Width of feeding rubber strip
mm
60
10
Max. Thickness of feeding rubber strip
mm
8
11.
Max. temperature for heating plate
℃
250
12.
Max. temperature for barrel
℃
80
13.
Heating Power
KW
18*2
14.
Total power
KW
85
15.
Oil tank capacity
L
600
16.
Machine dimensions
mm
2020×3700×(2730-3010)
17.
Machine Weight
Ton
10.5
